Cable Termination Heads

Cable termination heads are designed for connecting a smaller number of cables and conductors within railway signalling and safety systems.

They are used for reliable and well-organized cable connections along the main cable route or in the immediate vicinity of the track (installed along the route or at a distance of up to 2 m from the outer edge of the rail).

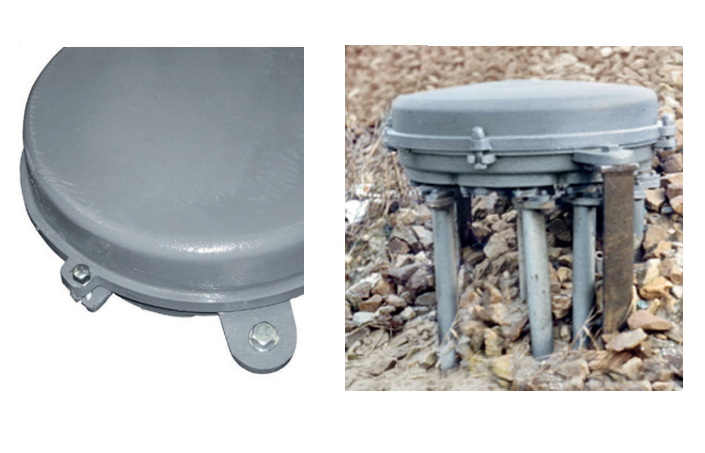

Kablovske glave

Construction

A cable termination head consists of:

  • Housing
  • Cover
  • Eight-pole terminal blocks
  • Cable entries
  • Protective cable conduit
  • Cable termination head base

The design is adapted for operation within railway infrastructure environments, enabling safe and stable installation.

Outdoor Installation Variants

  • Cable termination head 1×8 Bsg.vert 16a
  • Cable termination head 3×8 Bsg.vert 17a
  • Cable termination head 4×8 Bsg.vert 18a
  • Cable termination head 7×8 Bsg.vert 19a

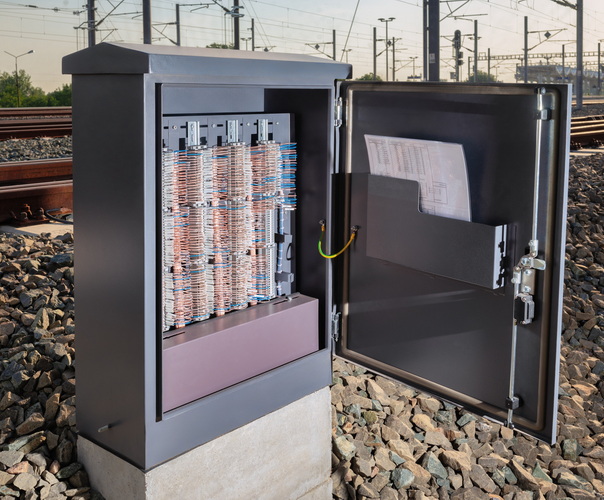

Double-Wall Cable Cabinet (KODZ)

The double-wall cable cabinet is designed for connecting and distributing signalling cables in outdoor conditions.

It is manufactured with a double-wall construction, providing additional mechanical protection and resistance to external influences.

In addition to its primary connection function, the cabinet also serves as an RO EGS unit.

Available Dimensions

  • For 240–400 connections
    970 × 380 × 985 mm
  • For 80 and 120 connections
    740 × 380 × 610 mm
Kablovski orman duplih zidova (KODZ)
